Small Solid Fat Content NMR Analyzer Agricultural Instruments

Place of Origin:	China
Brand Name:	NANBEI
Certification:	CE/ISO/SGS/TUV
Model Number:	PQ001-SFC

Minimum Order Quantity:	1/set
Packaging Details:	Wooden cases and cartons
Delivery Time:	7-10days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 set/per day

Detail Information

Name:	Solid Fat Content NMR Analyzer	Magnet Type:	Permanent Magnet
Magnetic Field Intensity:	0.5±0.08T	Probe Coil:	Ø10mm
Effective Sample Detection Area:	Ø10mm×H40mm	Size (LxWxH):	1685mm×520mm×386mm
High Light:	NMR Analyzer Agricultural Instruments , Fat Content NMR Analyzer , permanent magnet NMR Analyzer

Product Description

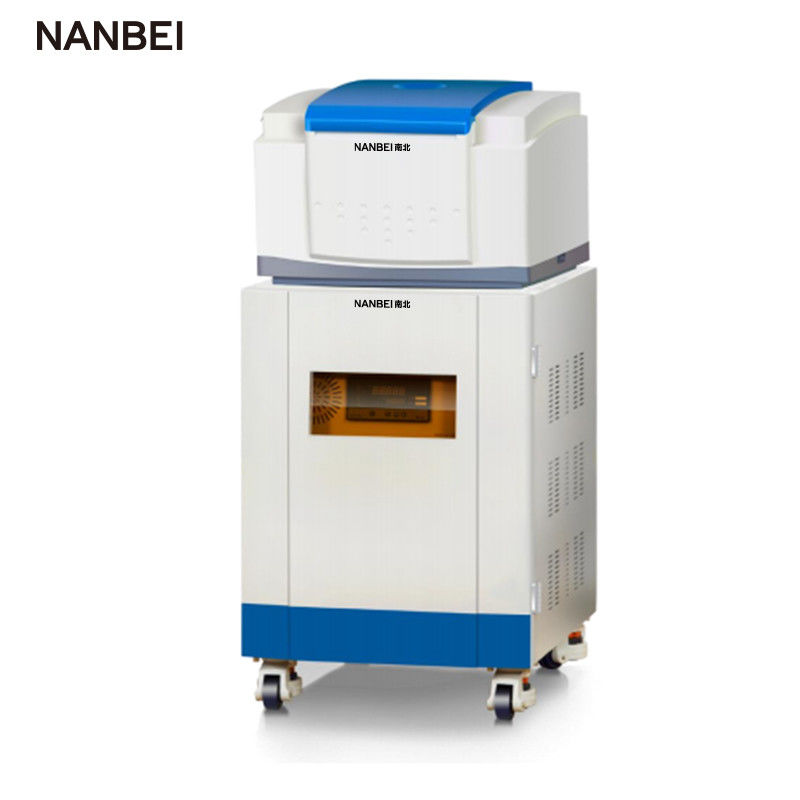

Good stability small size Solid fat content NMR Analyzer with CE/ISO

PQ001-SFC

Solid fat content NMR Analyzer

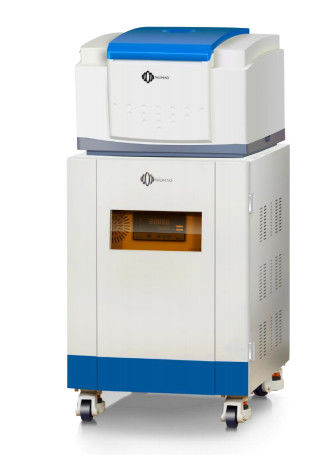

Small Solid Fat Content NMR Analyzer Agricultural Instruments 0

Product Introduction for Solid fat content NMR Analyzer

The PQ001-SFC NMR Analyzer was launched in 2008. After years of upgrade, PQ001 has many

advantages such as small size, high precision, good repeatability, good stability and excellent

cost/benefit performance. PQ001 has been widely used in the determination of Solid Fat Content.

Basic parameters for Solid fat content NMR Analyzer

1. Magnet type: permanent magnet;

2. Magnetic field intensity: 0.5±0.08T;

3. Probe coil: Ø10mm;

4. Effective sample detection area: Ø10mm×H40mm;

5. Size (LxWxH): 1685mm×520mm×386mm;

6. Weight: 134Kg;

Features for Solid fat content NMR Analyzer

1. Test accuracy: 0.1% error for 5% oil content; 0.02% error for 0.5% oil content;

2. Repeatability: Relative standard deviation less than 2%;

3. Test limitation: 10mg oil or water;

4. Compliance with national standards: ISO8292, AOCS Cd 16b-93

5. User friendly Win7 operation system and easy-to-use software; operating personnel can operate easily

even with no training; multi-language.

Specifications for Solid fat content NMR Analyzer

1. Magnet type: permanent magnet; Magnetic field intensity: 0.5±0.08T;

2. Magnetic field uniformity: ≤30ppm (Ø10mm×H40mm,Cylinder);

3. Magnetic field stability: <200Hz/Hour;

4. Magnet temperature control: dual system of nonlinear precise temperature control,

temperature tunable from 250C-350C;

5. RF field: pulse frequency: 1-30MHz; frequency control accuracy: 0.1Hz;

6. RF power amplifier > 300W;

7. Maximum bandwidth: 2000KHz;

8. Probe Size: 10mm (standard configuration);

9. Effective sample detection area: Ø10mm×H40mm (standard configuration);

10. Maximum echo number is 18,000; minimum echo time : 60µs;

11. Based on PCI bus industrial control computer platform, I7 processor, 8G DDR memory, 1T

hard disk.

12. Operating Conditions

Power supply: 220V, 50Hz

- Temperature: 22-280C

- Humidity: 30-70%

13. Size (L, W, H): 1685mm×520mm×386mm

14. Weight: 134Kg (Magnet box 60Kg, Spectrometer 25Kg, RF unit 35Kg )

PQ001-SFC Standard configuration
1. Hardware	Component		Quantity
(1) Magnet unit	Magnet unit box		1
	Magnet		1
(2) RF unit	RF unit box		1
	Preamplifier		1
	RF power amplifier		1
	Magnet temperature control		1
	Heating system		1
	Power supply system		1
(3) Spectrometer unit (including ICC)	Industrial control computer		1
	Pulse sequence generator (PSG)		1
	Direct digital frequency Synthesis (DDS)		1
	Analog-to-digital converter (ADC)		1
Probe coil	Ø 10mm		1
2.Software	Component		Quantity
software	Solid Fat Content Testing Software		1
3.Accessory	Component		Quantity
(1) Accessory	software CD		1
	Standard set (0, 30% and 70%)		1
	NMR Glass tube(10*200mm)		100
	Ø 10mm test tube stand		1
	Debugging tools	Special tools	1
		50Ω terminal	1
		BNC adapter assembly	1
		Testing line	2
	Fuses		5
(2) Computer peripherals	LCD display		1
	Mouse, keyboard		1
