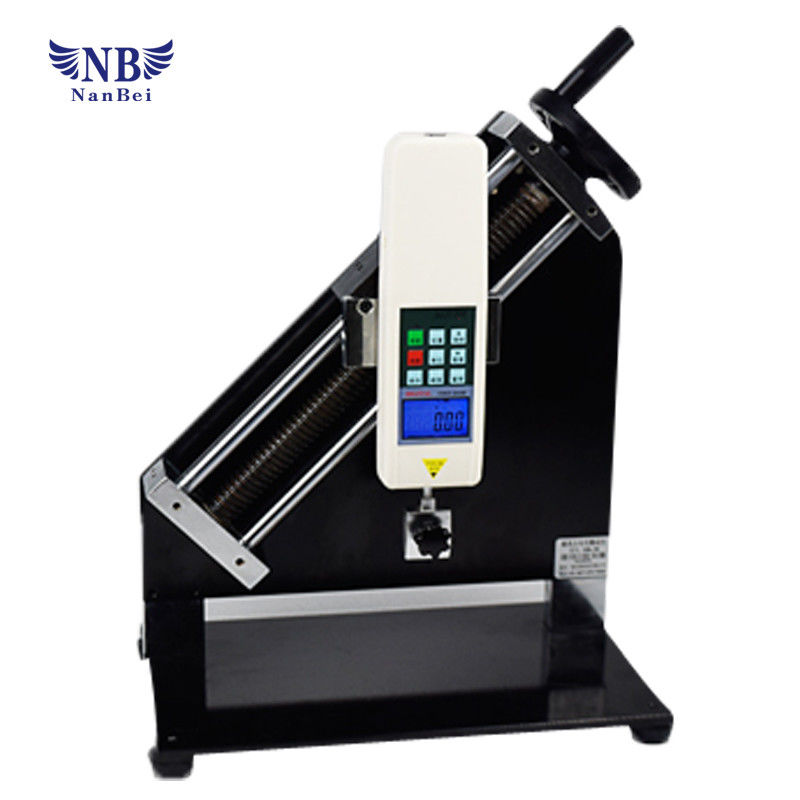

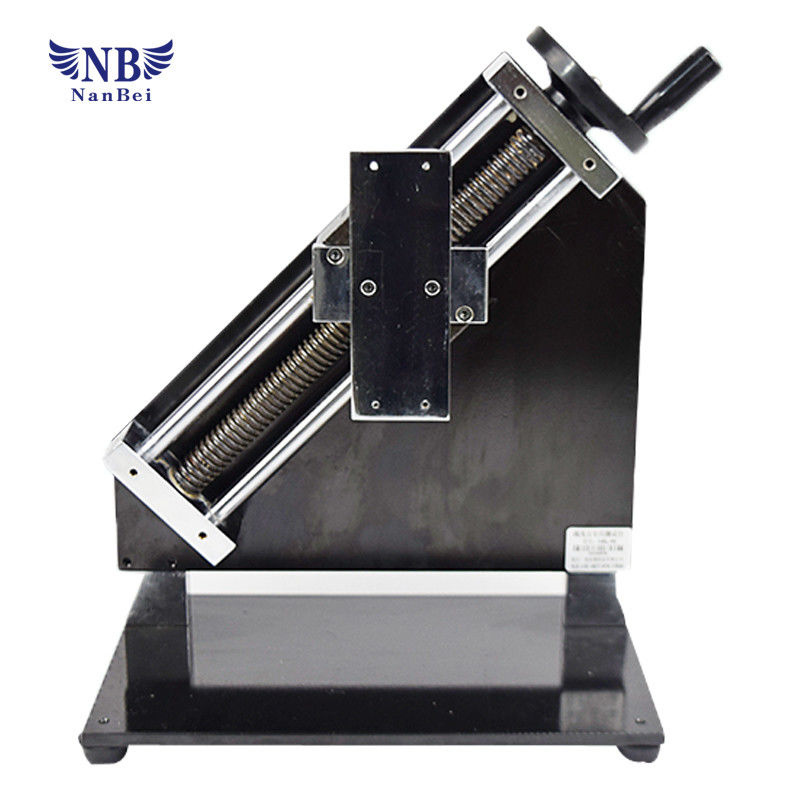

90 Degree Manual Peel off Force Test Stand,Peel Strength Testing Machine

90 Degree Manual Peel off Force Test Stand,Peeling Strong Force Tester,Peel Strength Testing Machine

Function of Force Test Stand

ABL Peel-off Force Test Stand is specially designed for NK, HF series Push pull equipment,

can be combined into the test machine with different uses.

Specially used in PC board on foil circuit adhesion force or Tin foil, aluminum foil, tape etc.

Hit the object surface firmness.

In view of vertical dissect the test sample. To measure the actual strength.

Feature

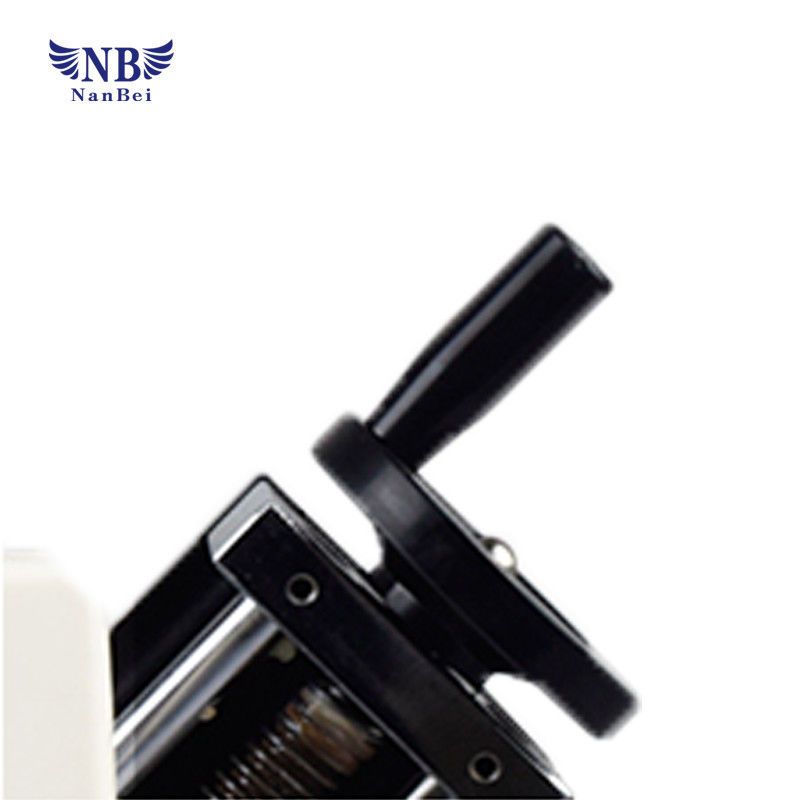

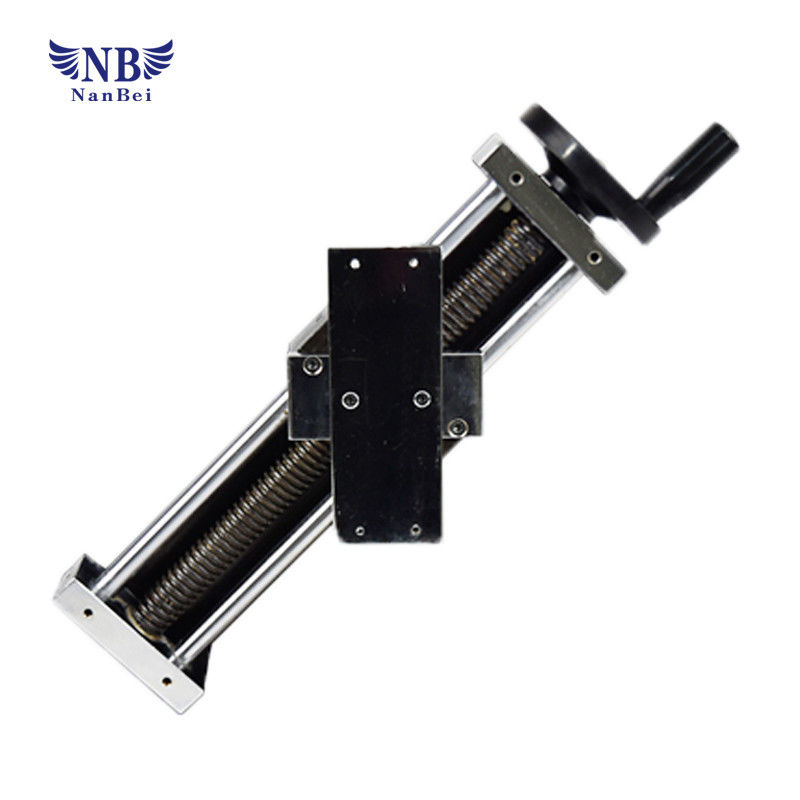

1: Manual operation, ladder type screw transmission, simple and stable operation.

2: This frame can be installed in table face, to make the test stand more stable.

Specification

Effective trip: 150mm

Max. Load: 500N

Net weight: 19kg

Test effective area: 105×100 mm, largest can reach 105×152mm
